Installing Calyptia Core

You can deploy Calyptia Core on many different platforms including Linux, Kubernetes, or even your Laptop:
​
Red Hat Enterprise Linux
​
​
Ubuntu Server Linux
​
​
Existing Kubernetes
​
Docker Desktop
​
​
Amazon Linux 2+
​
​
Preparing the Environment for Calyptia Core
General Architecture Overview
Calyptia Core deploys within your infrastructure, whether that is an existing kubernetes cluster, your laptop (via Docker Desktop) or a Linux server. Calyptia Core configuration is managed within our cloud console at https://core.calyptia.com.
All data is processed within your environment, virtual private cloud, on your infrastructure. The only data sent to Calyptia are configuration files and metrics

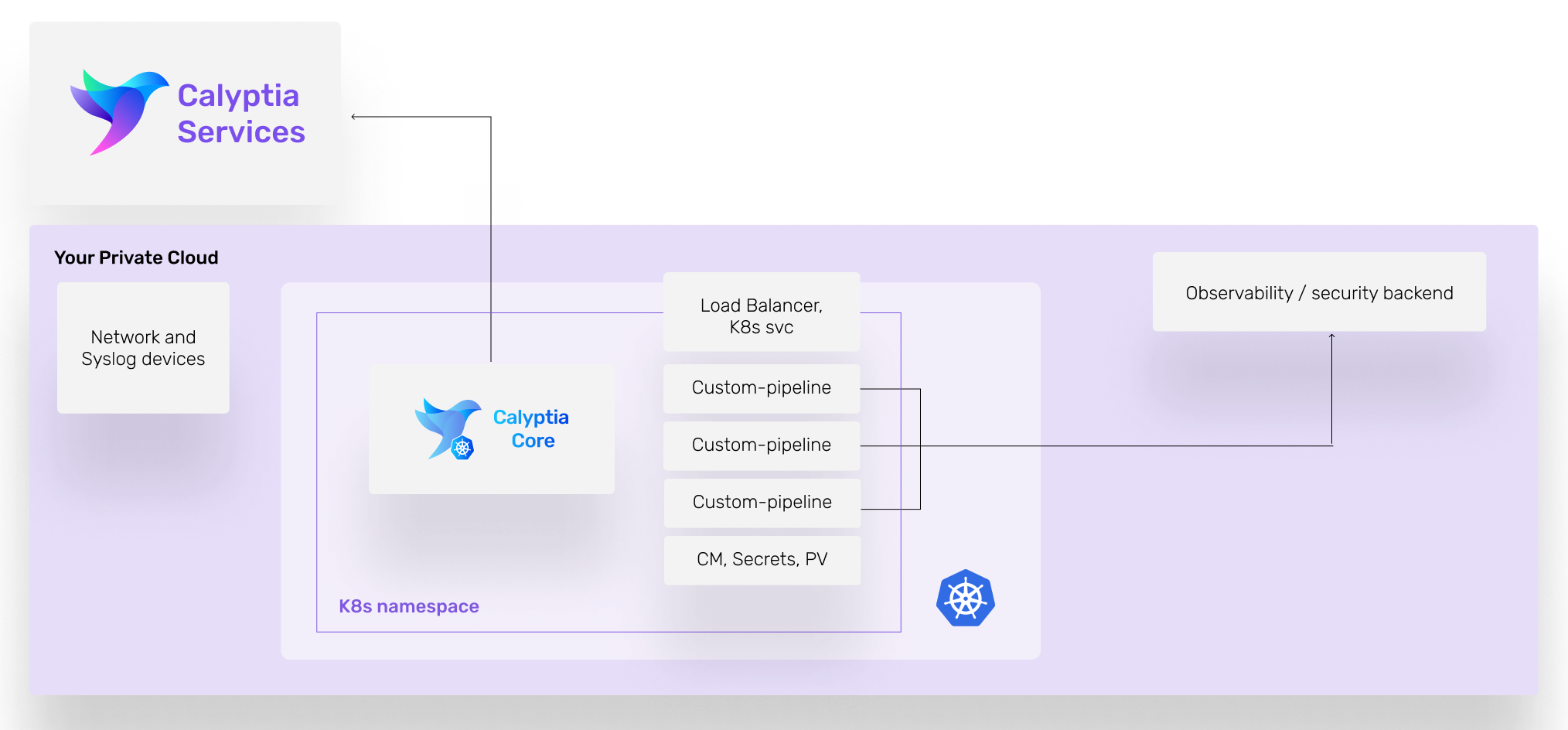

An example of Calyptia Core deployed on top of an existing Kubernetes cluster
Networking and Firewall Requirements
If your organization uses outbound firewall rules, you may need to allow the following ports and URLs. Descriptions about each URL can also be found below
Protocol
Port
URL
Description
TCP
443
cloud-api.calyptia.com
This is the main API endpoint for Calyptia Core and is used for configuration
TCP
443
core.calyptia.com
The following URL is where the UI console is located
TCP
443
helm.calyptia.com
If using the helm charts for installing / managing Calyptia Core the following is our helm repository
TCP
443
core-packages.calyptia.com
If using the install-core.sh scripts for VMs or Bare Metal, the following contains packages
TCP
443
ghcr.io/calyptia/
www.ghcr.io/calyptia/
Calyptia Core is deployed via container images hosted on GitHub container registry. Allowing the following URLs ensures that Calyptia download links are accessible to the enterprise
TCP
443
ghcr.io/token?scope=repository:calyptia/core:pull&service=ghcr.io

http://ghcr.io/token?scope=repository:calyptia/core/calyptia-fluent-bit:pull&service=ghcr.io
Calyptia Core is deployed via container images hosted on GitHub container registry. The following contains the tokens required from GitHub container registry
TCP
443
http://ghcr.io/v2/calyptia/core/manifests/latest
Calyptia Core is deployed via container images hosted on GitHub container registry. The following contains the manifest / container images required from the GitHub container registry
TCP
443
pkg-containers.githubusercontent.com/

objects.githubusercontent.com/*
Calyptia Core is deployed via container images hosted on GitHub container registry. The following contains the image layers when applying latest updates.

Protocol	Port	URL	Description
TCP	443	cloud-api.calyptia.com	This is the main API endpoint for Calyptia Core and is used for configuration
TCP	443	core.calyptia.com	The following URL is where the UI console is located
TCP	443	helm.calyptia.com	If using the helm charts for installing / managing Calyptia Core the following is our helm repository
TCP	443	core-packages.calyptia.com	If using the install-core.sh scripts for VMs or Bare Metal, the following contains packages
TCP	443	ghcr.io/calyptia/ www.ghcr.io/calyptia/	Calyptia Core is deployed via container images hosted on GitHub container registry. Allowing the following URLs ensures that Calyptia download links are accessible to the enterprise
TCP	443	ghcr.io/token?scope=repository:calyptia/core:pull&service=ghcr.io http://ghcr.io/token?scope=repository:calyptia/core/calyptia-fluent-bit:pull&service=ghcr.io	Calyptia Core is deployed via container images hosted on GitHub container registry. The following contains the tokens required from GitHub container registry
TCP	443	http://ghcr.io/v2/calyptia/core/manifests/latest	Calyptia Core is deployed via container images hosted on GitHub container registry. The following contains the manifest / container images required from the GitHub container registry
TCP	443	pkg-containers.githubusercontent.com/ objects.githubusercontent.com/*	Calyptia Core is deployed via container images hosted on GitHub container registry. The following contains the image layers when applying latest updates.

Last modified 10d ago
